Why Choose the LF-4?
The LF-4 is designed for falconers who want strong transmitter output without the long antenna normally associated with higher-output telemetry.
Unlike our transmitters built around a traditional full-length antenna, the LF-4 is specifically tuned for a compact loaded antenna approximately 6.5 inches long. Combined with its lithium battery, magnetic on/off system, and rugged construction, the LF-4 offers a strong balance of signal performance, convenient operation, and practical battery life.
At approximately 7.5 grams, it is intended for medium and larger birds rather than applications where minimum transmitter weight is the primary concern.
Specifications
Weight: Approximately 7.5 grams
Battery: 1 × 1/3N lithium battery (2L76)
Battery Life: Approximately 10 days normal operation, plus about 3 additional days in low-battery mode
Rated Range: Up to 30+ miles under favorable conditions
On/Off: Magnetic switching
Antenna: Loaded antenna, approximately 6.5 inches
Mounting Options: Transmitter only, leather bewit, or tail-mount wire clip
Frequency: Select an available frequency or request a custom frequency
Actual tracking range varies with terrain, elevation, receiver, antenna orientation, and surrounding conditions.
Compact Loaded Antenna
The LF-4 is specifically tuned for use with our compact loaded antenna. At approximately 6.5 inches long, it provides a much shorter physical antenna than a traditional full-length telemetry antenna while maintaining the tracking performance the LF-4 was designed to deliver.
Replacement loaded antennas are available and can be changed if the original antenna becomes damaged or worn.
Get full-size antenna performance in a much more compact package.
Our loaded antennas are approximately half the length of a traditional full-length antenna while providing similar tracking performance. Internal tuning components allow the antenna to remain compact without requiring the full wire length normally needed for the operating frequency.
At approximately 6.5 inches long, the loaded design provides a lower-profile antenna option for compatible L.L. Electronics transmitters while maintaining the dependable signal performance you expect in the field.
Replacement loaded antennas are available for Razor, LF-4, and XLF transmitters in several frequency ranges.
Please select both the transmitter model and frequency range that match your transmitter.
Important: Loaded antennas are tuned for specific transmitter models and frequency ranges. Select the option that matches your transmitter. If you're unsure which antenna you need, contact us before ordering.
Battery Life & Magnetic Switching
The LF-4 uses a single 1/3N lithium battery. Under normal operating conditions, the transmitter provides about 10 days of operation before entering a reduced-power low-battery mode that provides roughly 3 additional days of operation.
Magnetic switching allows the transmitter to be turned on and off without opening the transmitter or removing the battery. This makes it convenient to prepare and fit the transmitter before a flight, then activate it with a magnet immediately before use.
Mounting Options
The LF-4 can be ordered in several mounting configurations:
Transmitter Only — For customers who already have their preferred mounting hardware.
Leather Bewit — A traditional leg-mount option.
Tail-Mount Wire Clip — For use with compatible tail-mount systems.
If you are unsure which mounting option is best for your bird or application, contact us before ordering.
Choosing Your Frequency
L.L. Electronics transmitters are available on a variety of radio-tracking frequencies.
Select one of the available frequencies when ordering, or request a custom frequency if you need to match an existing tracking system. If you are unsure which frequency you need, contact us with the receiver and equipment you currently use, and we can help determine compatibility.
Replacement Parts & Accessories
1/3N Lithium Batteries
LF-2 & LF-3 Hack - One battery to operate
LF-4 - One battery to operate

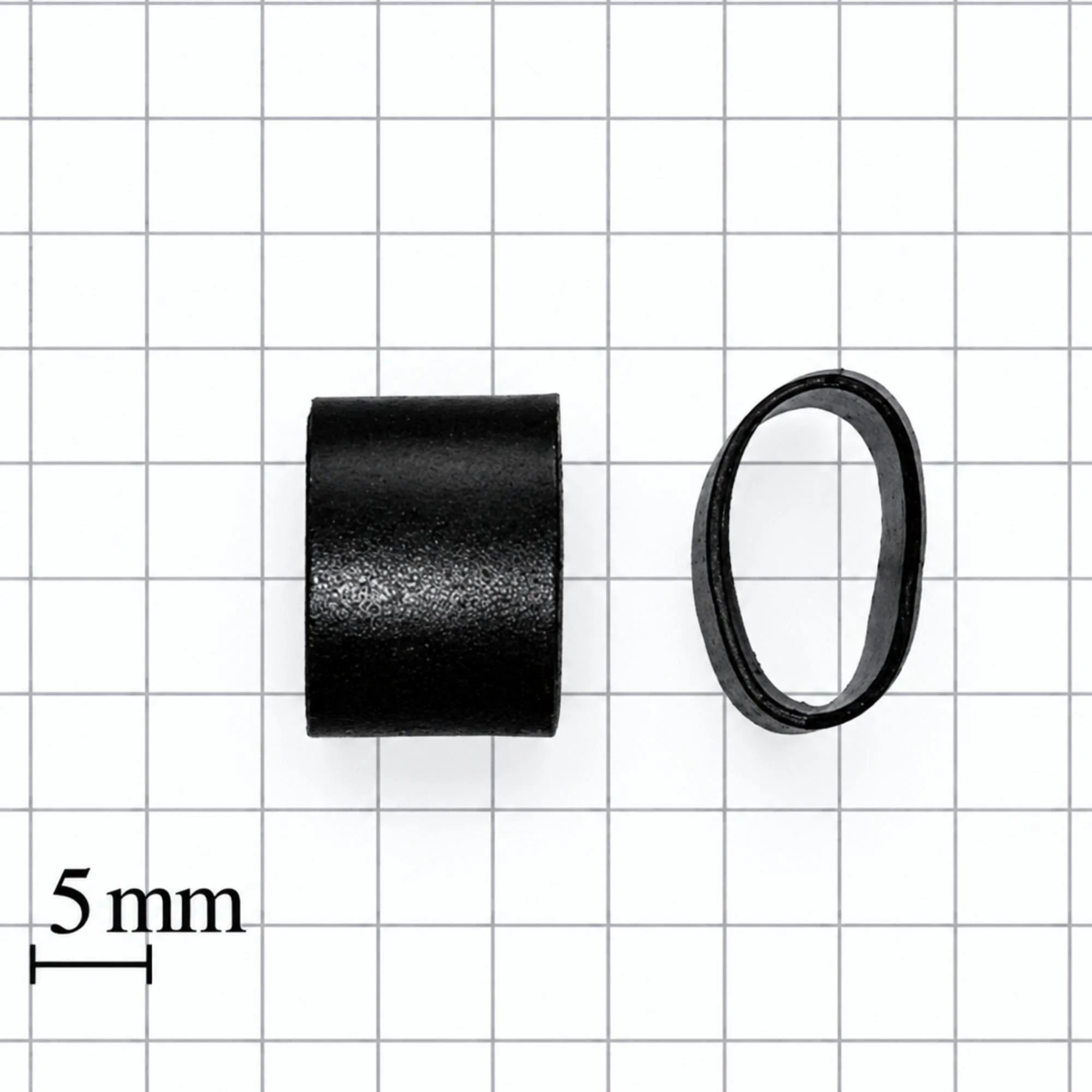

Battery Holders are used to secure the battery in place during use. These holders are for transmitters models that use 1/3N batteries, Such as our 1/3N Hack transmitters and the LF-4.
Pack of 10
Get full-size antenna performance in a much more compact package.
Our loaded antennas are approximately half the length of a traditional full-length antenna while providing similar tracking performance. Internal tuning components allow the antenna to remain compact without requiring the full wire length normally needed for the operating frequency.
At approximately 6.5 inches long, the loaded design provides a lower-profile antenna option for compatible L.L. Electronics transmitters while maintaining the dependable signal performance you expect in the field.
Replacement loaded antennas are available for Razor, LF-4, and XLF transmitters in several frequency ranges.
Please select both the transmitter model and frequency range that match your transmitter.
Important: Loaded antennas are tuned for specific transmitter models and frequency ranges. Select the option that matches your transmitter. If you're unsure which antenna you need, contact us before ordering.
Our personalized key chain magnet comes complimentary with all of our products featuring a magnetic tap on/tap off function. However, they are available for purchase separately.
Need Help Choosing the Right Transmitter?
Not sure whether the LF-4 is the right transmitter for your bird or tracking setup? Call us at 815-317-6199 or send us a message below. We’re happy to help with transmitter selection, mounting options, frequencies, and receiver compatibility.
